Starting a Plugin System

Happy June! This development update brings a brand new plugin system for all of you aspiring developers who want to help make OpenMarch better.

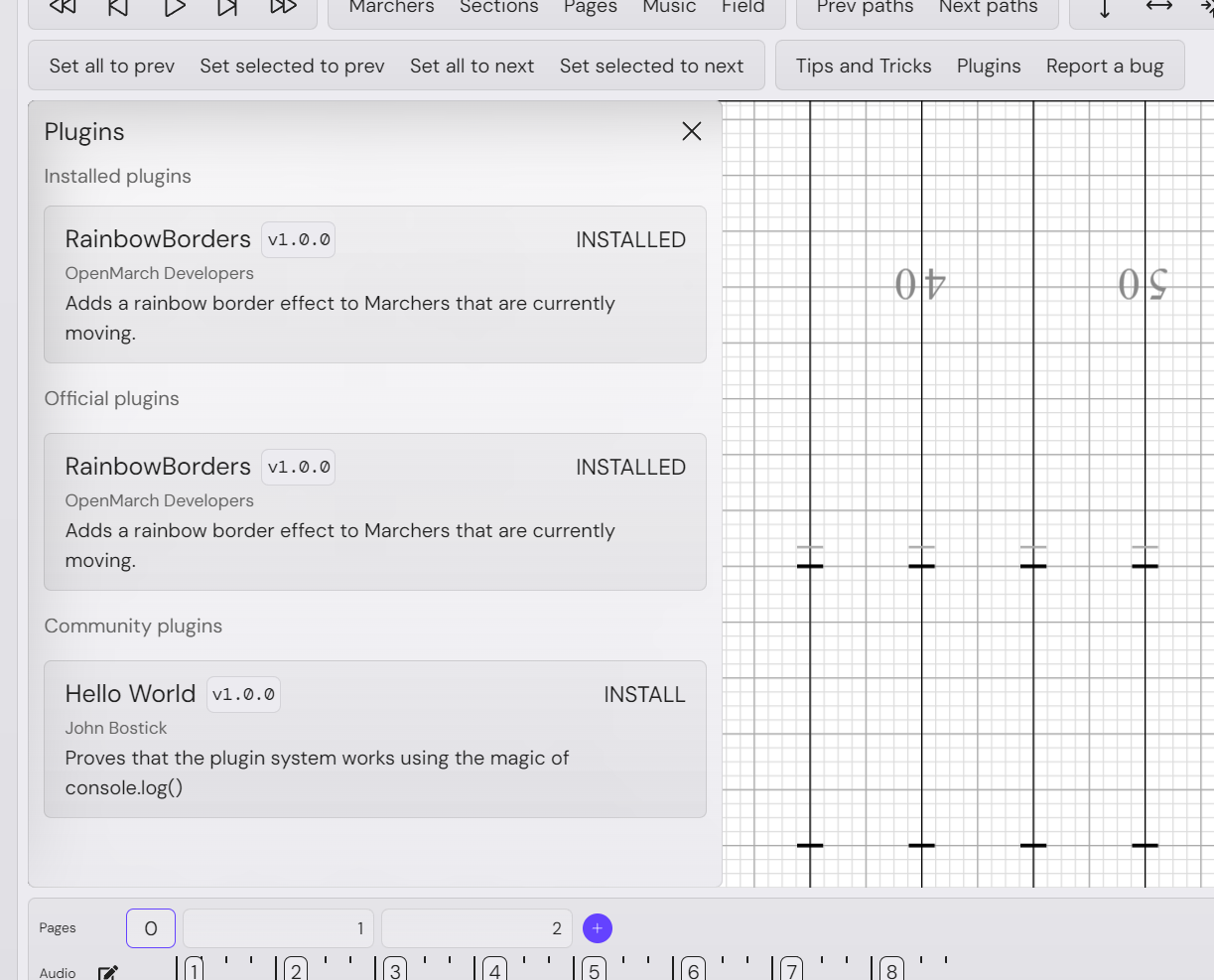

Plugin Panel

There is now a “Plugins” button in the OpenMarch toolbar that opens a new panel. This panel lets you:

• See all plugins currently installed (and gives you the option to remove them)
• Use the Internet™ to get official and community OpenMarch plugins in a nice list right inside of OpenMarch
  • From this list, you can install plugins approved by us (that means no malware!) inside of OpenMarch without ever having to touch an .om.js file

Making Your Own Plugin

From our new Plugin Repository, there are a few requirements when creating plugins:

1. Plugin file names must be unique. You cannot publish to the plugin repository under a name that has been taken.
2. The plugin’s file extension must end in .om.js.
3. Metadata is required in the file in a specific format, shown in the example below.
4. The plugin’s code may be contained within a single function named for the plugin to avoid conflicts with other plugins.

Plugins are loaded from the plugins directory within the OpenMarch app data folder (E.g. %appdata%/OpenMarch/plugins on Windows).

• Simply create a file that ends with the .om.js extension, and this script will be loaded in the main window on startup.
• The plugin’s code will be run as if it were in a <script> tag within the main window (which is how plugins are loaded into OpenMarch).

Submitting a Plugin

To submit a plugin to the repository, you will submit a pull request to the OpenMarch/plugins repository. This pull request should:

• Create a file under the /community/ directory with the .om.js extension
  • This file should have a unique name
• Contain a name, version, author, and description of the plugin to be added

Example plugin

Below is an example plugin for OpenMarch. You may use it as a template for your own plugins.

rainbowBorders.om.js

// Name: RainbowBorders
// Description: Adds a rainbow border effect to Marchers that are currently moving.
// Version: 1.0.0
// Author: OpenMarch Developers

async function RainbowBorders() {
  let canvas = window.canvas;
  if (!canvas) {
    // Retry after 1 second if canvas is not found
    console.log("Canvas element not found, retrying in 1 second...");
    setTimeout(RainbowBorders, 1000);
    return;
  }
  console.log("RainbowBorders loaded successfully!");
  setInterval(() => {
    canvas._objects.forEach((element) => {
      if (element.classString === "Marcher" && element.isMoving) {
        const colors = [
          "#FF5733",
          "#33FF57",
          "#3357FF",
          "#F1C40F",
          "#8E44AD",
          "#E74C3C",
          "#2ECC71",
          "#3498DB",
        ];
        const randomColor = colors[Math.floor(Math.random() * colors.length)];

        element.set("borderColor", randomColor);
      }
    });
  }, 100);
}
RainbowBorders();
